110-117 Acoustic
Large 5-chamber acoustic casement delivering up to 45 dB sound reduction.
Request a QuoteKey Specifications
- Profile depth
- 110 / 117 mm
- Standard glazing
- 5+20A+5 / 5+27A+5
- Acoustic
- Up to 45 dB
- Profile
- 5-chamber
Glazing Options
Engineering details

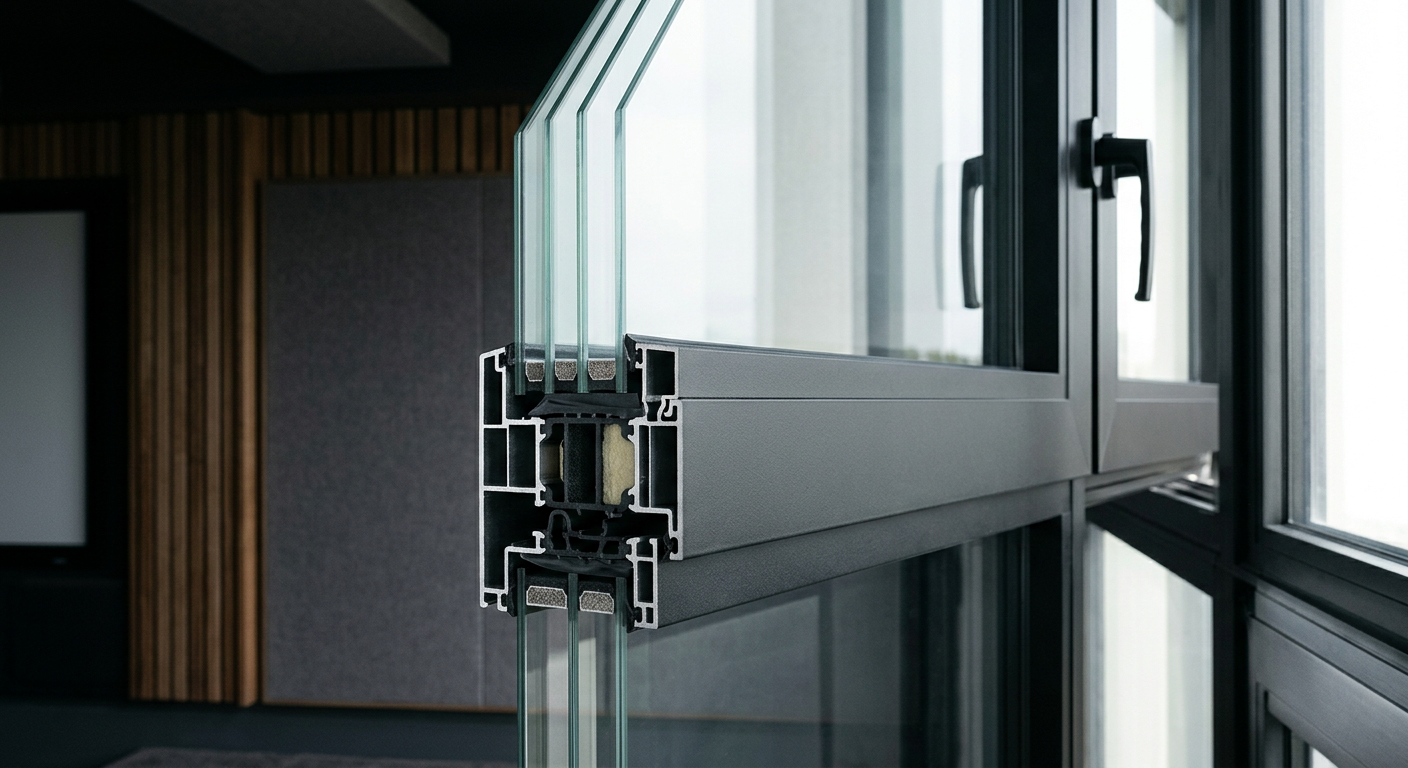

Profile, sealing & performance
Construction

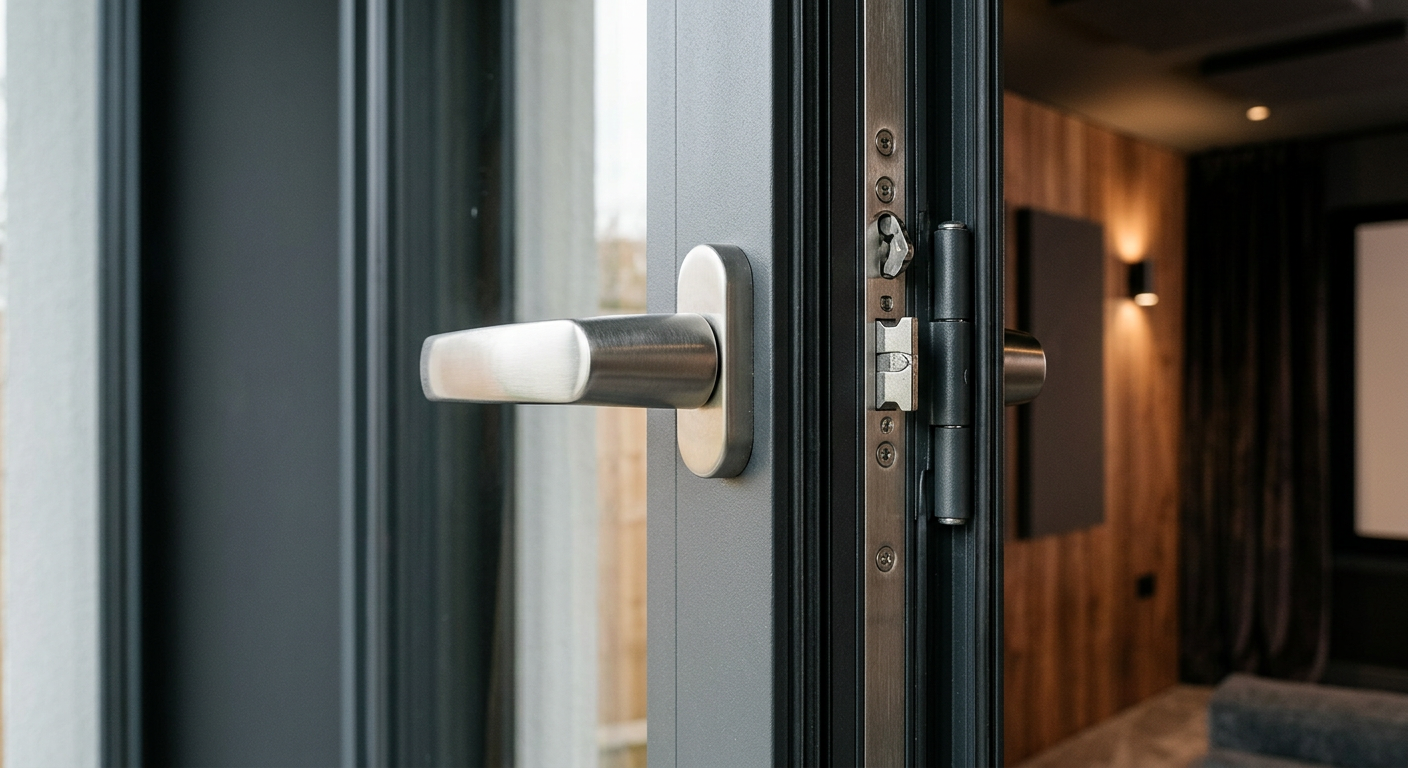

Sealing & hardware
• Quadruple EPDM acoustic seal
• Asymmetric laminated glass cavity
• German engineered multi-point
• Anti-fall safety cable
• Tilt-and-turn option
Dimensions & drainage
Concealed weep slots with longitudinal anti-rain channel
Glazing bead profiles
Available bead profiles for this series:
- • Rhombus
- • Square

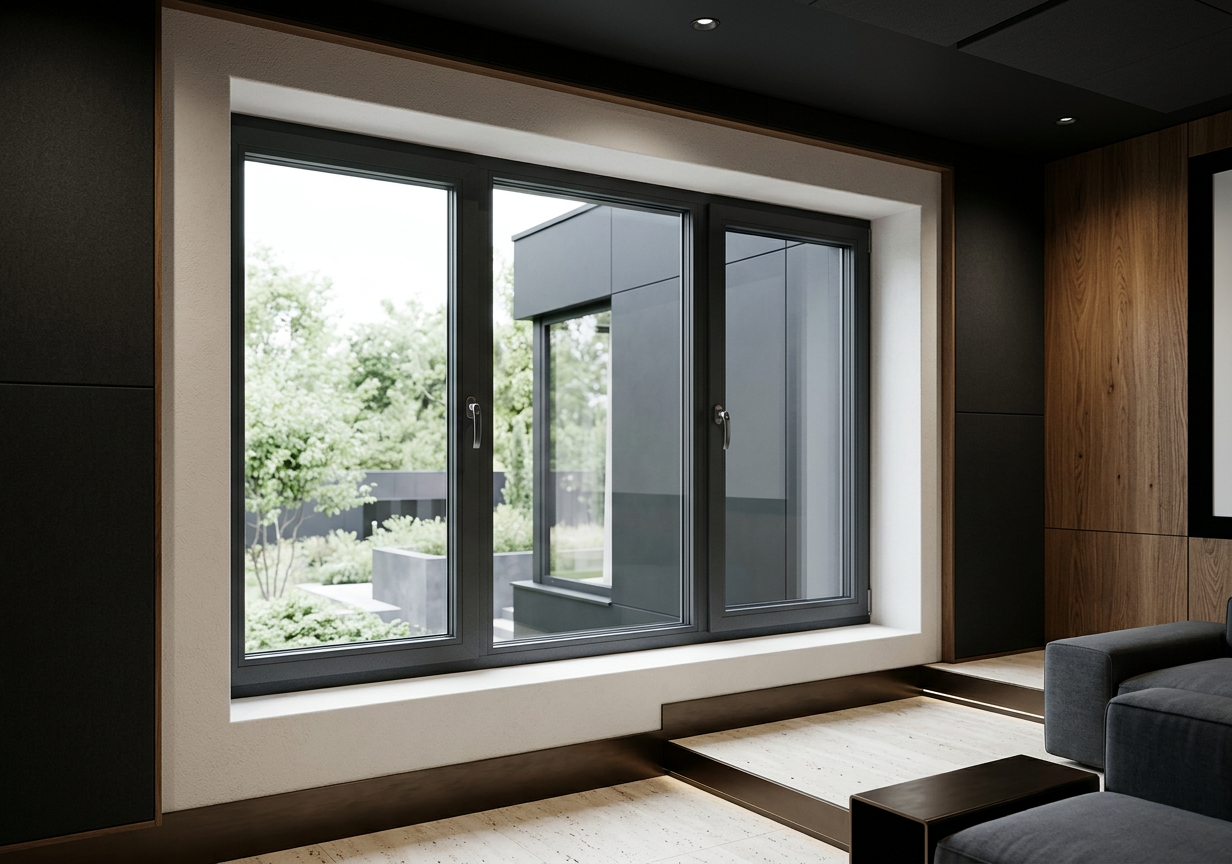

Series gallery
Real installations and hardware details from the manufacturer reference catalogue.
Color Palette
15 standard finishes — RAL custom on request.
Plus custom RAL on RFQ (Liangxuan chart, +2 weeks lead time). All finishes available indoor and outdoor.
Technical Advantages
- • Up to 45 dB acoustic insulation
- • 5-chamber profile
- • EPDM acoustic seals
- • Asymmetric laminated glass option
- • Ideal for urban environments
Use Cases
Warranties
- Marine-grade powder coating10 years (within 300 m of coast)
- German engineered hardware5 years
- Tempered laminated glass5 years
- MAZLOKS installation2 years
UK Compliance
- BS 6206 — tempered / laminated glass
- Document L — thermal (Low-E + Argon recommended)
- Part Q — security
Lead time: 12–14 weeks from PO confirmation to UK delivery.
