110-117 Systematic Casement

Triple-seal casement window with German engineered hardware and 304 stainless mesh screen.

Request a Quote

Key Specifications

Profile depth
110 / 117 mm
Standard glazing
8+15A+8 / 8+20A+8
Hardware
German engineered
Screen
304 stainless mesh

Glazing Options

5+27A+5
5 mm + Air 27 + 5 mm
High-performance double glazing
8+15A+8
8 mm + Air 15 + 8 mm
Reinforced double glazing (110 series)
8+20A+8
8 mm + Air 20 + 8 mm
XL double glazing (117 series)

Engineering details

Profile, sealing & performance

Air
Class 4
Water
E1200
Wind
C5
U-value
1.0 W/m²K
Acoustic
38 dB Rw

Construction

Alloy6063-T5
Wall thickness1.8 – 2.8 mm
Frame depth110 / 117 mm
Chambers5
Thermal breakPA66 GF25 multi-chamber

Sealing & hardware

• Triple EPDM weather seal

• Automotive-grade composite joint

• Mushroom-lock compression seal

• German engineered multi-point

• Anti-fall safety cable

• Anti-lift hooks

• 304 stainless mesh insect screen

Dimensions & drainage

Max width1500 mm
Max height2400 mm

Concealed weep slots with longitudinal anti-rain channel

Glazing bead profiles

Available bead profiles for this series:

  • • Rhombus
  • • Square
  • • Beveled

Series gallery

Real installations and hardware details from the manufacturer reference catalogue.

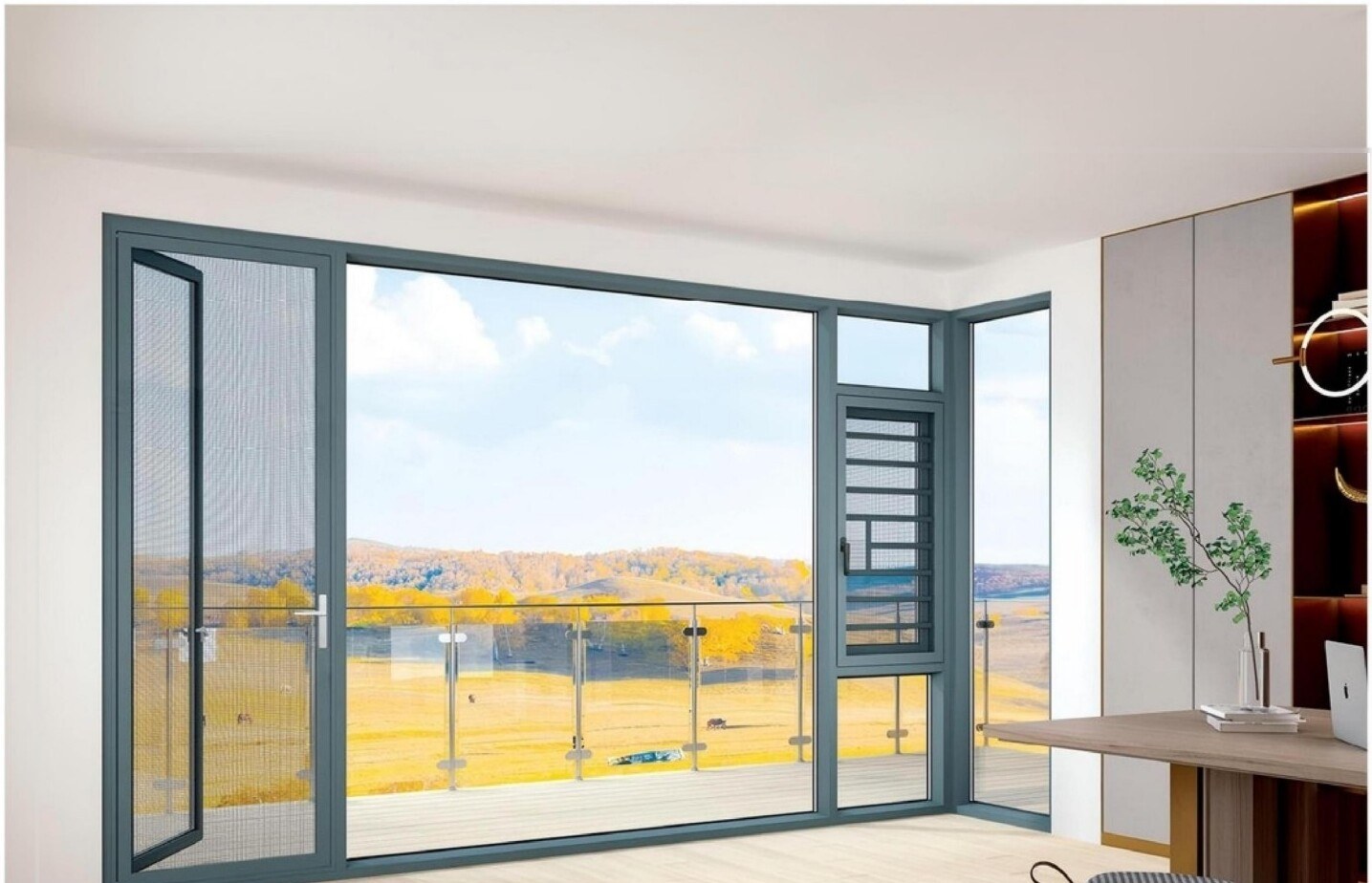

110-117 casement window opening onto a balcony with autumn landscape
Corner installation — full-height fixed pane with side-vented casement and integrated 304 stainless mesh.

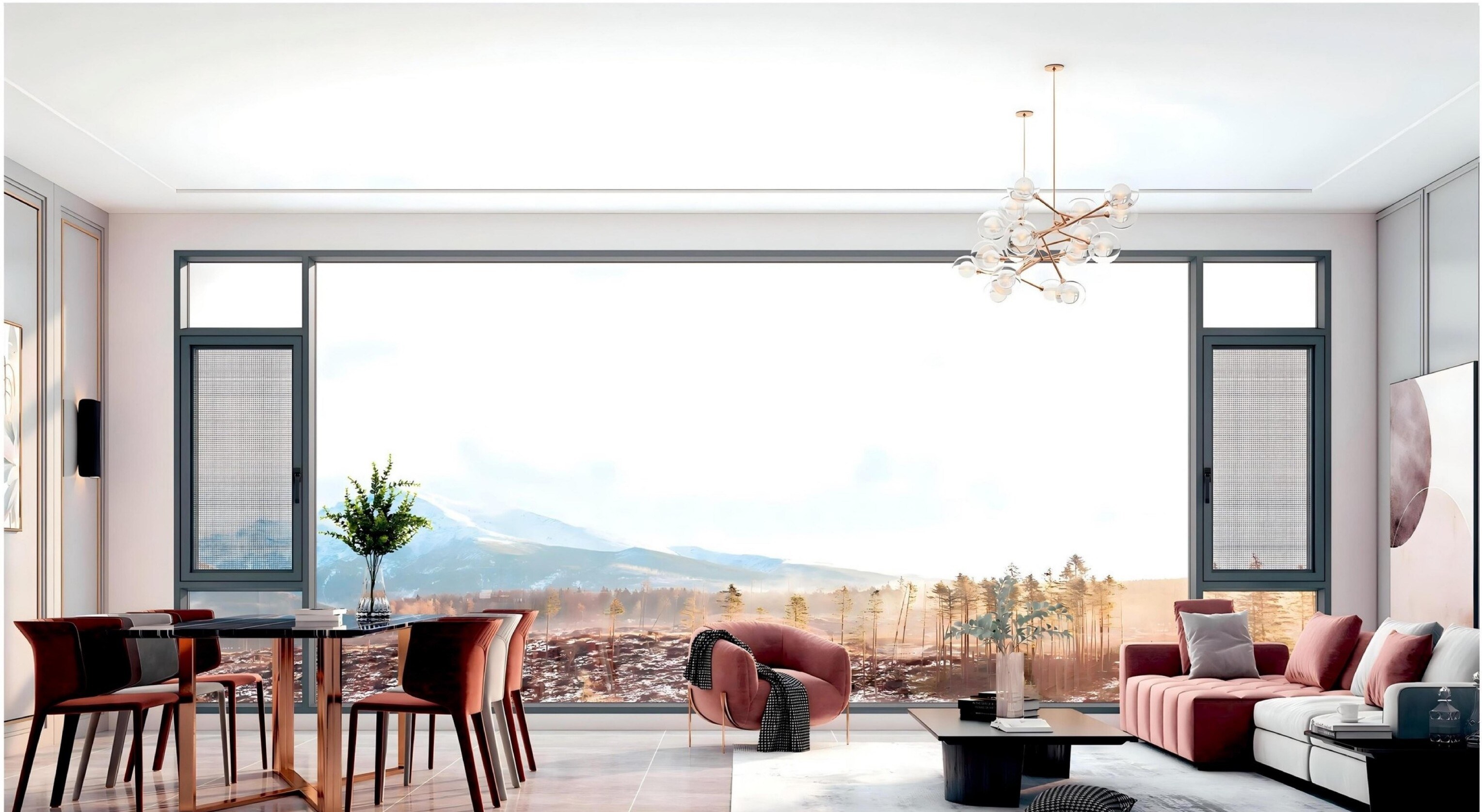

Panoramic 110-117 system framing a mountain valley living room
Oversized insulated glazing — 5+20A+5 (110) / 5+27A+5 (117) supports large-format spans.

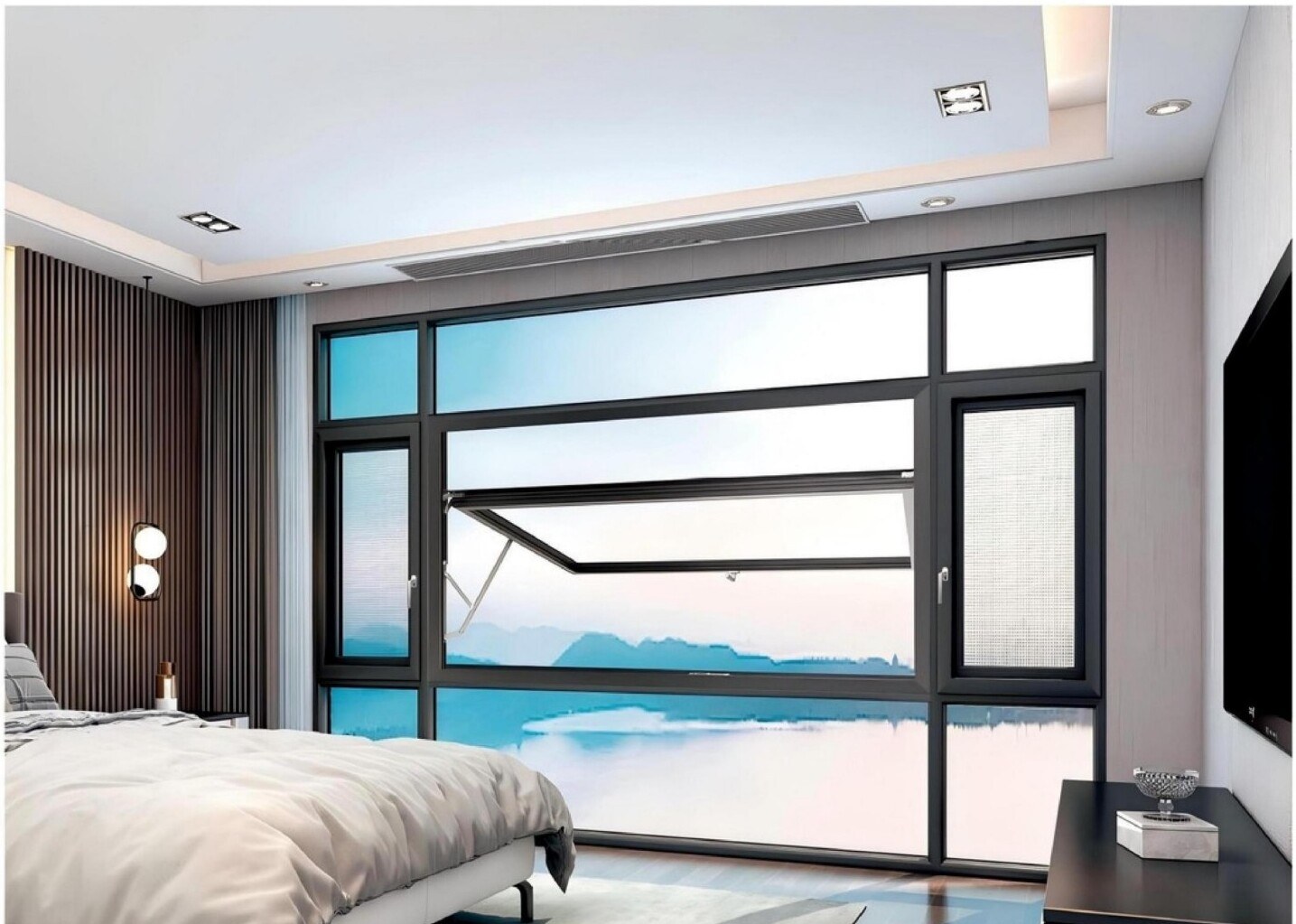

110-117 tilt-and-turn casement in a bedroom overlooking a lake
Tilt-and-turn configuration — micro-ventilation without compromising security.

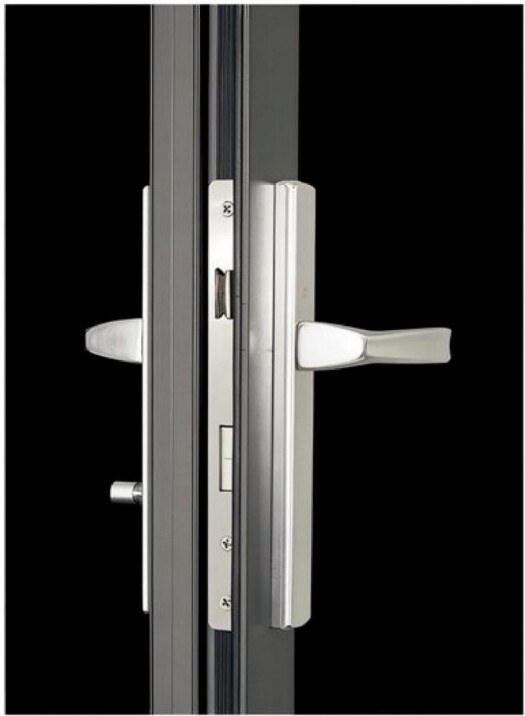

German engineered multi-point lock and handle on the 110-117 sash
German engineered multi-point hardware with finish-matched handle and anti-lift hooks.

Color Palette

15 standard finishes — RAL custom on request.

Coffee
Brown
Sand Gray
Beige
Metallic Platinum Gray
Silver
Black Gold
Black
Starshine Gray
Gray
Porcelain Electroplated Black
Black
Porcelain Electroplated Gray
Gray
Fluorine Porcelain Gray
Gray
Milan Gray
Gray
Milan White
White
Cream Gray
Beige
Original Wood
Wood-effect
Extreme Black
Black
Extreme Gray
Gray
Ceramic Silver Gray
Silver

Plus custom RAL on RFQ (Liangxuan chart, +2 weeks lead time). All finishes available indoor and outdoor.

Technical Advantages

  • • Triple weather seal
  • • German engineered multi-point hardware
  • • 304 stainless mesh insect screen
  • • Multi-point locking
  • • Reinforced corner brackets

Use Cases

Bedrooms
Living rooms
Coastal villas
High-rise apartments

Warranties

  • Marine-grade powder coating10 years (within 300 m of coast)
  • German engineered hardware5 years
  • Tempered laminated glass5 years
  • MAZLOKS installation2 years

UK Compliance

  • BS 6206 — tempered / laminated glass
  • Document L — thermal (Low-E + Argon recommended)
  • Part Q — security

Lead time: 12–14 weeks from PO confirmation to UK delivery.
