LX-06 Small Sliding Skylight
Small sliding skylight, max glass 5+0.76+5, 100 kg load.
Request a QuoteKey Specifications
- Profile
- 90 × 130 mm
- Wall thickness
- 2.5 mm
- Max area (single)
- ≤ 1.5 m²
- Inclination
- 0–10°
- Load
- 100 kg
- MOQ
- 1.5 / 3 m²
Glazing Options
Engineering details

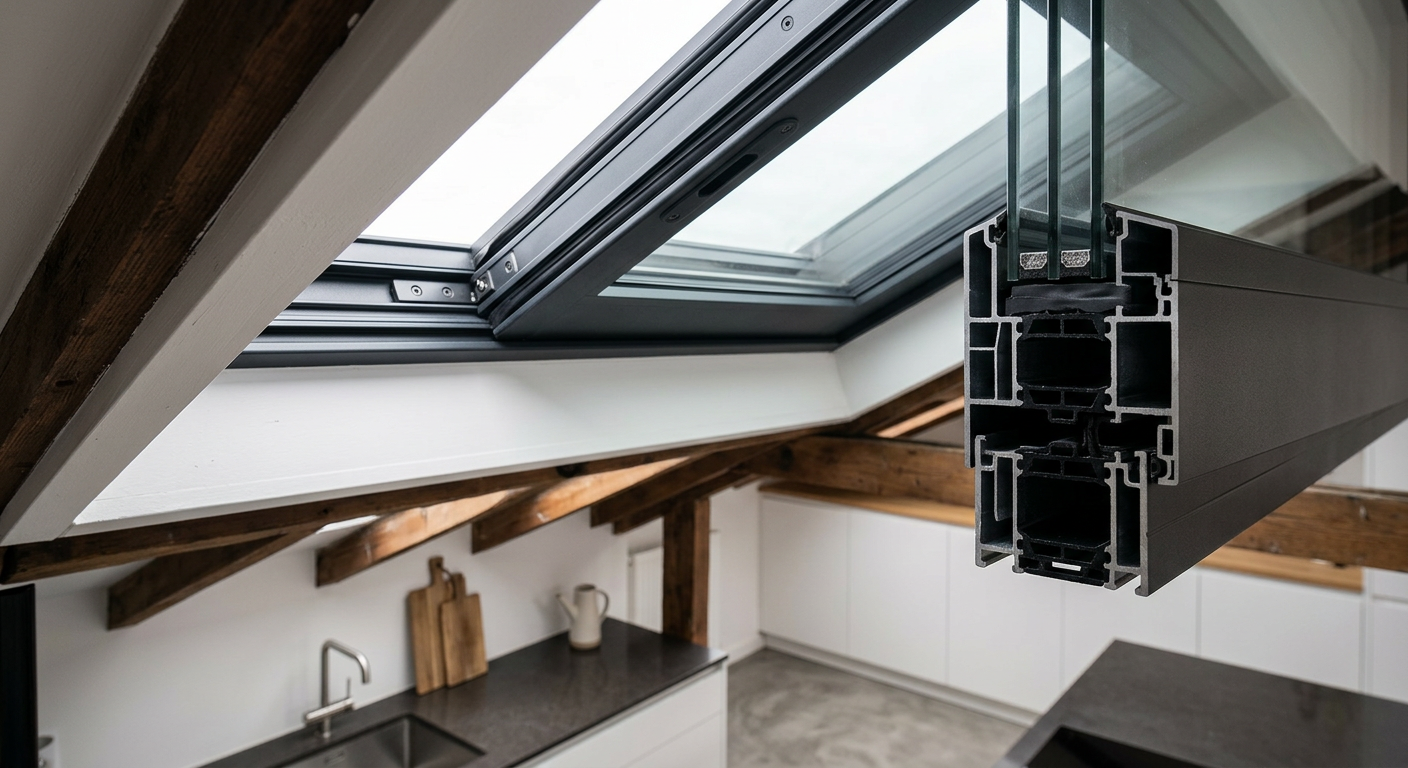

Profile, sealing & performance
Construction

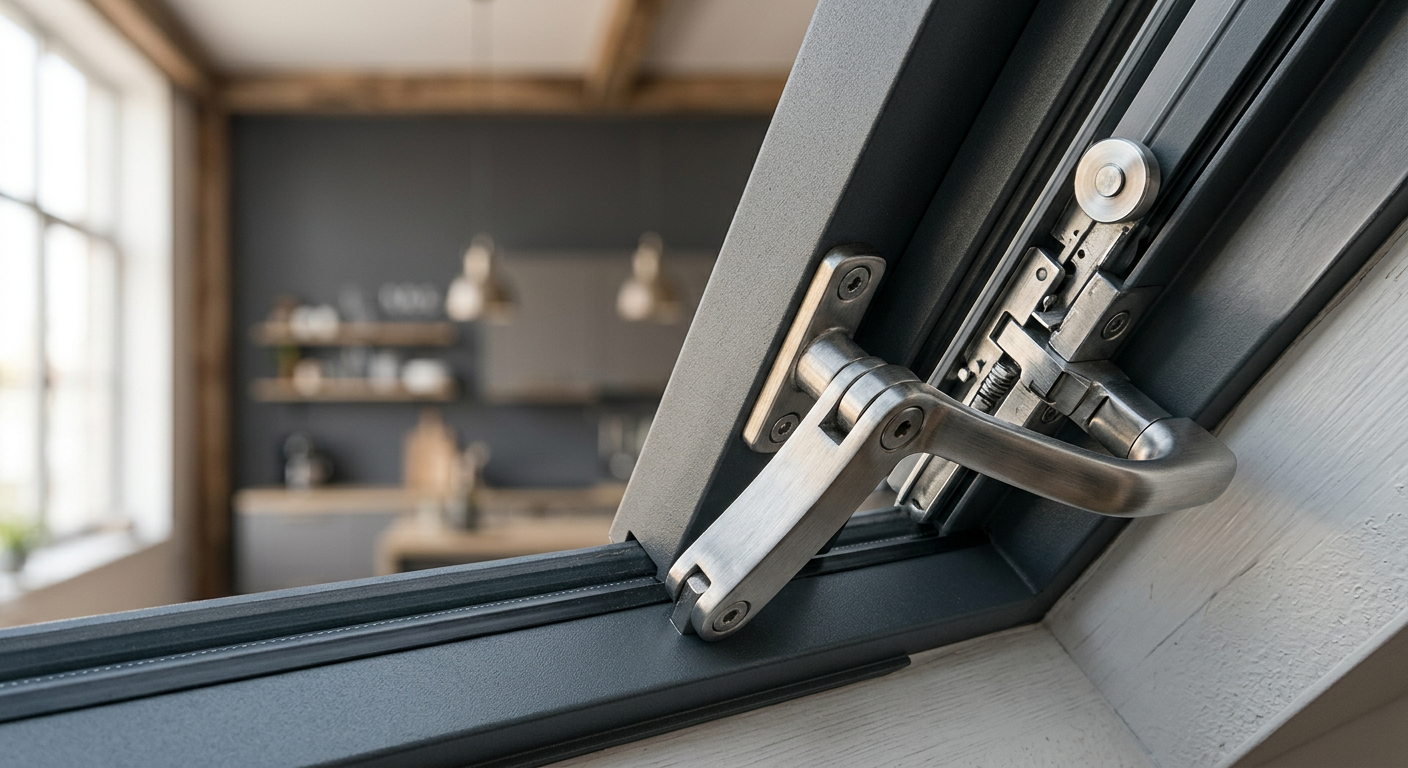

Sealing & hardware
• Brush + EPDM seal
• Heavy-duty stainless rollers (100 kg)
• Manual or motorised
Dimensions & drainage
Perimeter integrated gutter

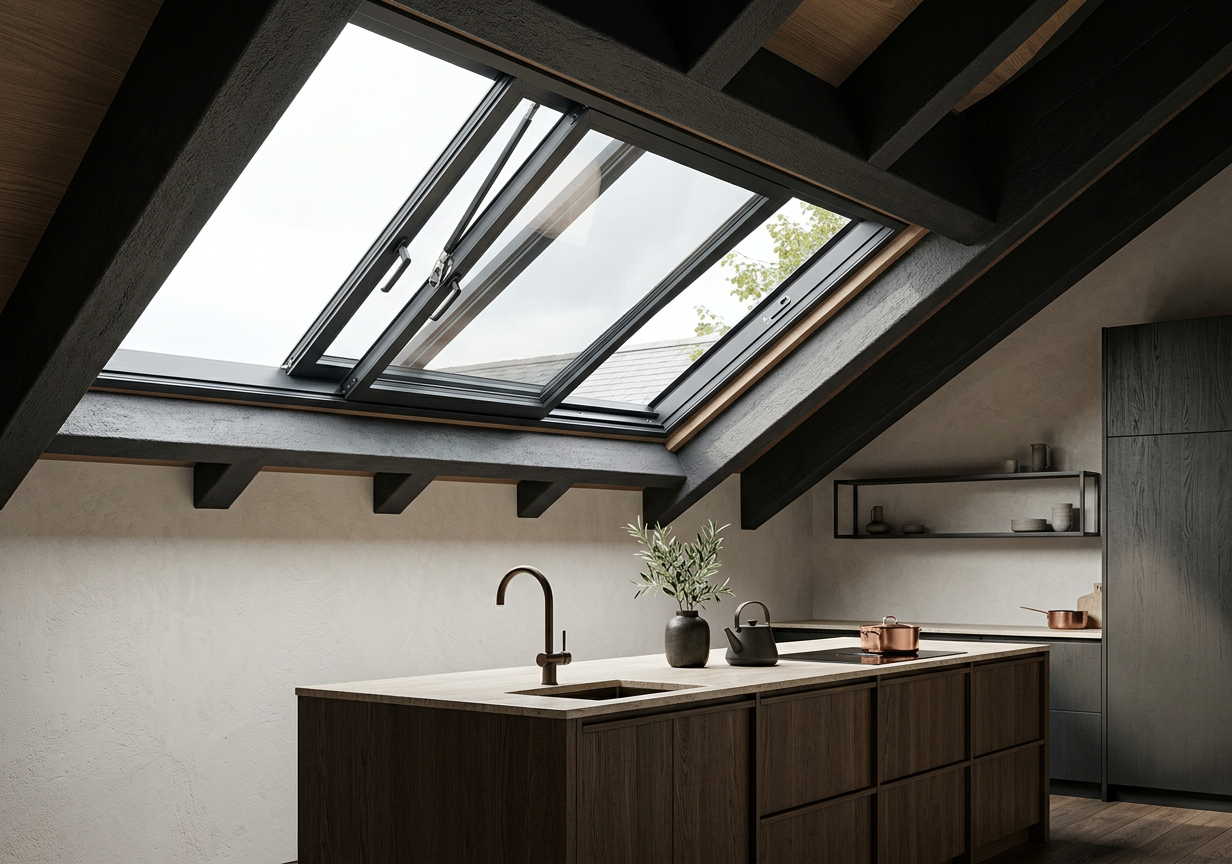

Series gallery
Real installations and hardware details from the manufacturer reference catalogue.
Color Palette
15 standard finishes — RAL custom on request.
Plus custom RAL on RFQ (Liangxuan chart, +2 weeks lead time). All finishes available indoor and outdoor.
Technical Advantages
- • Small footprint sliding mechanism
- • 100 kg sash load
- • 0–10° inclination
- • Indoor-outdoor sealing
Use Cases
Warranties
- Marine-grade powder coating10 years (within 300 m of coast)
- German engineered hardware5 years
- Tempered laminated glass5 years
- MAZLOKS installation2 years
UK Compliance
- BS 6206 — tempered / laminated glass
- Document L — thermal (Low-E + Argon recommended)
- Part Q — security
Lead time: 12–14 weeks from PO confirmation to UK delivery.
