LX-08 Heavy-duty Sliding Skylight
Heavy-duty sliding skylight up to 36 m² with integrated gutter, priced per m².
Request a QuoteKey Specifications
- Profile
- 110 × 350 mm
- Wall thickness
- 5.0 mm
- Max area (single)
- ≤ 36 m²
- Inclination
- 0–5°
- MOQ
- 10 / 15 m²
- Pricing
- Per m²
Glazing Options
Engineering details

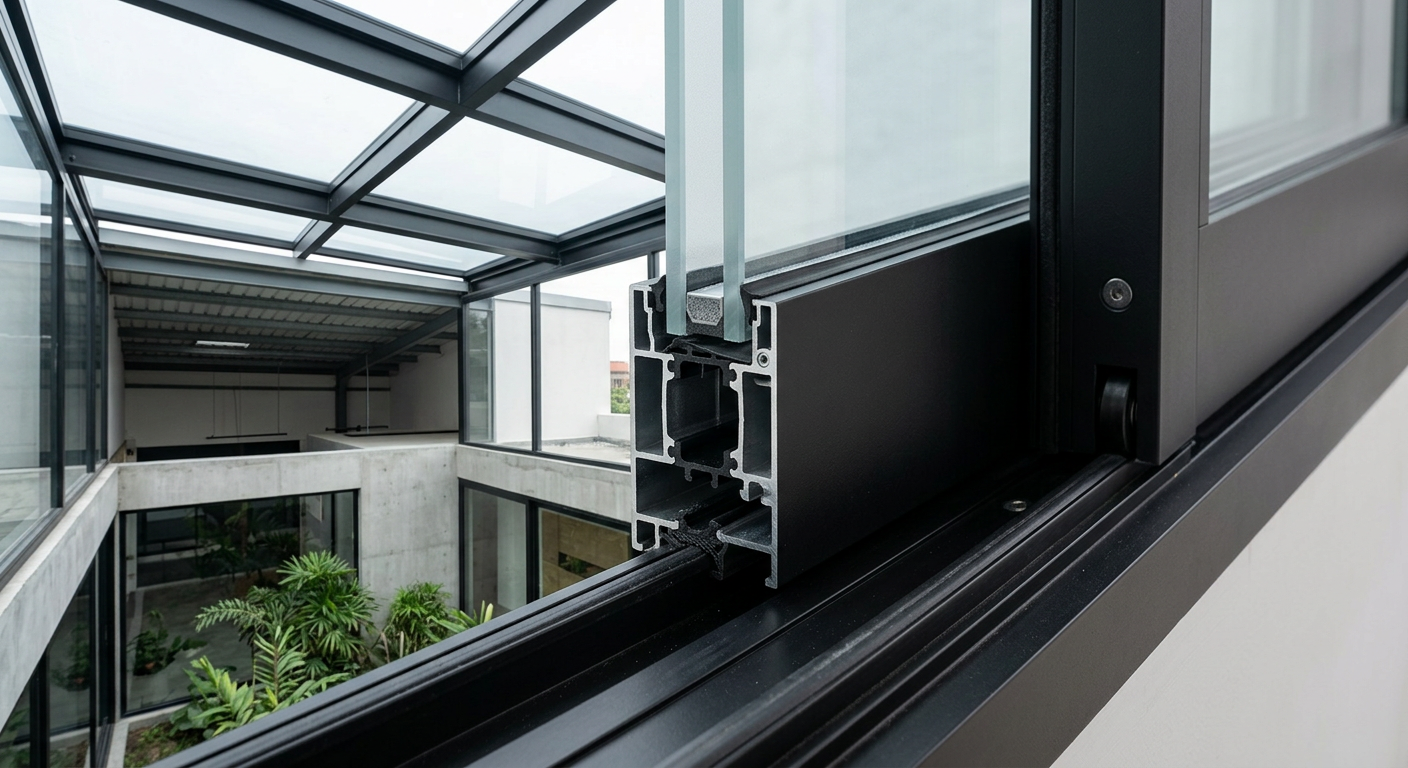

Profile, sealing & performance
Construction

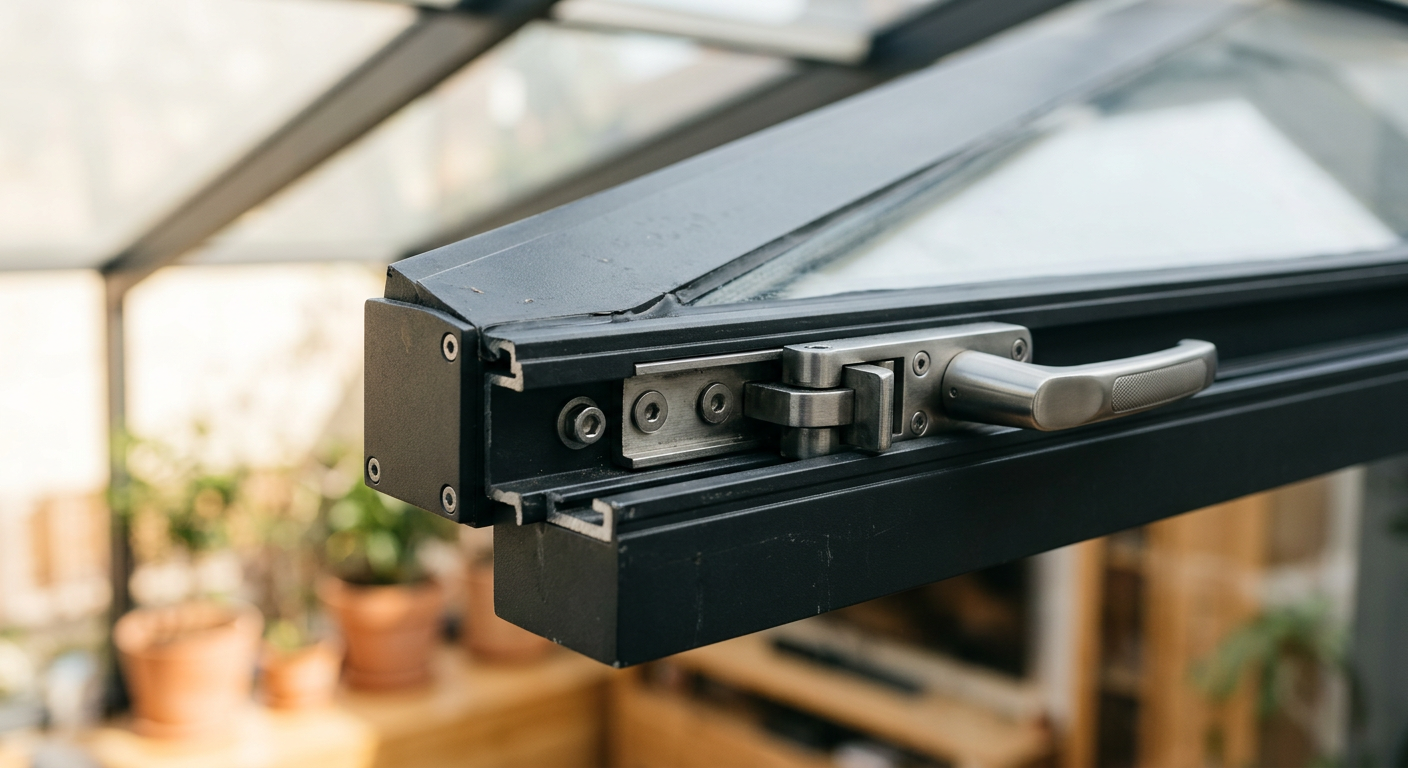

Sealing & hardware
• Quadruple brush + EPDM seal
• Compression seal at locks
• Commercial-grade rollers
• Multi-point in-line locks
Dimensions & drainage
Integrated commercial gutter system

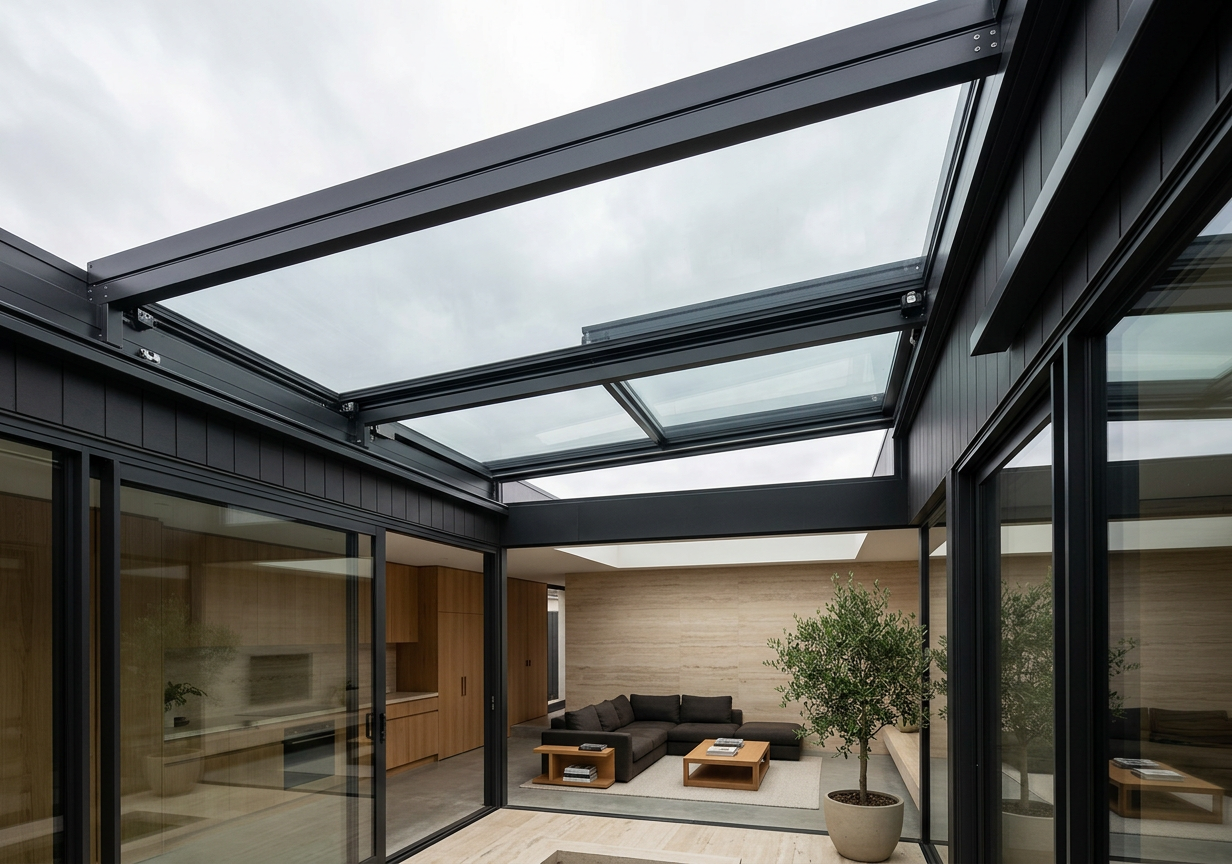

Series gallery
Real installations and hardware details from the manufacturer reference catalogue.
Color Palette
15 standard finishes — RAL custom on request.
Plus custom RAL on RFQ (Liangxuan chart, +2 weeks lead time). All finishes available indoor and outdoor.
Technical Advantages
- • Up to 36 m² single span
- • Integrated gutter
- • 5 mm reinforced wall
- • Commercial-grade load capacity
Use Cases
Warranties
- Marine-grade powder coating10 years (within 300 m of coast)
- German engineered hardware5 years
- Tempered laminated glass5 years
- MAZLOKS installation2 years
UK Compliance
- BS 6206 — tempered / laminated glass
- Document L — thermal (Low-E + Argon recommended)
- Part Q — security
Lead time: 12–14 weeks from PO confirmation to UK delivery.
