Micro-slit Narrow-frame Sliding/Hanging

Minimalist sightlines with single or double-glazed stile.

Request a Quote

Key Specifications

Bottom track
105 / 161 mm
Stile
25 × 40, 1.8 mm
Frame
32 mm

Glazing Options

5+0.76+5
5 mm + PVB 0.76 + 5 mm
Laminated safety
5+20A+5
5 mm + Air 20 + 5 mm
Standard double glazing

Engineering details

Profile, sealing & performance

Air
Class 2
Acoustic
28 dB Rw

Construction

Alloy6063-T5
Wall thickness1.8 mm
Frame depth32 / 105 / 161 mm

Sealing & hardware

• Brush seal

• EPDM bead

• Top-hung micro-slit gear

Dimensions & drainage

Max width2200 mm
Max height2700 mm

Step-free threshold

Glazing bead profiles

Available bead profiles for this series:

  • • Beveled
  • • Square

Series gallery

Real installations and hardware details from the manufacturer reference catalogue.

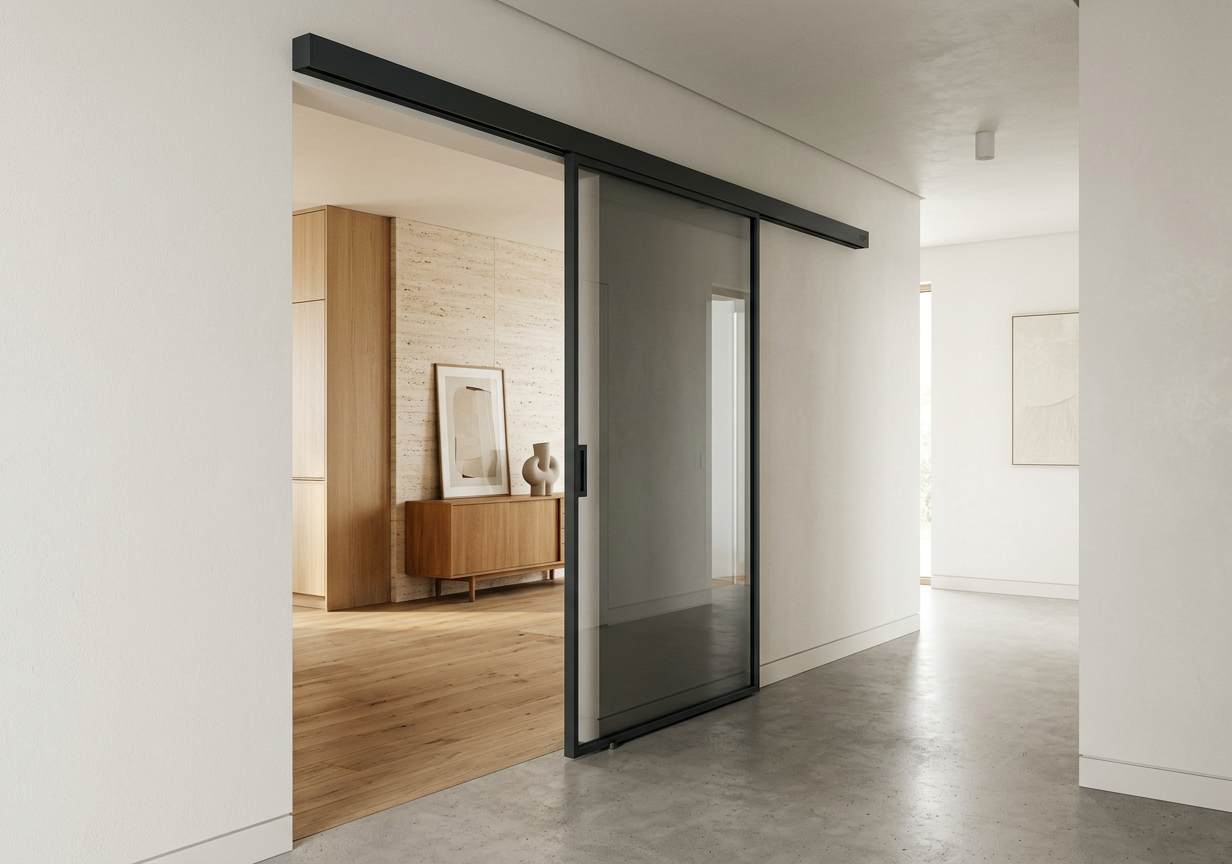

microslit sliding hanging — in-situ architectural installation
Micro-slit narrow-frame top-hung — 32 mm visible profile for minimalist interiors.

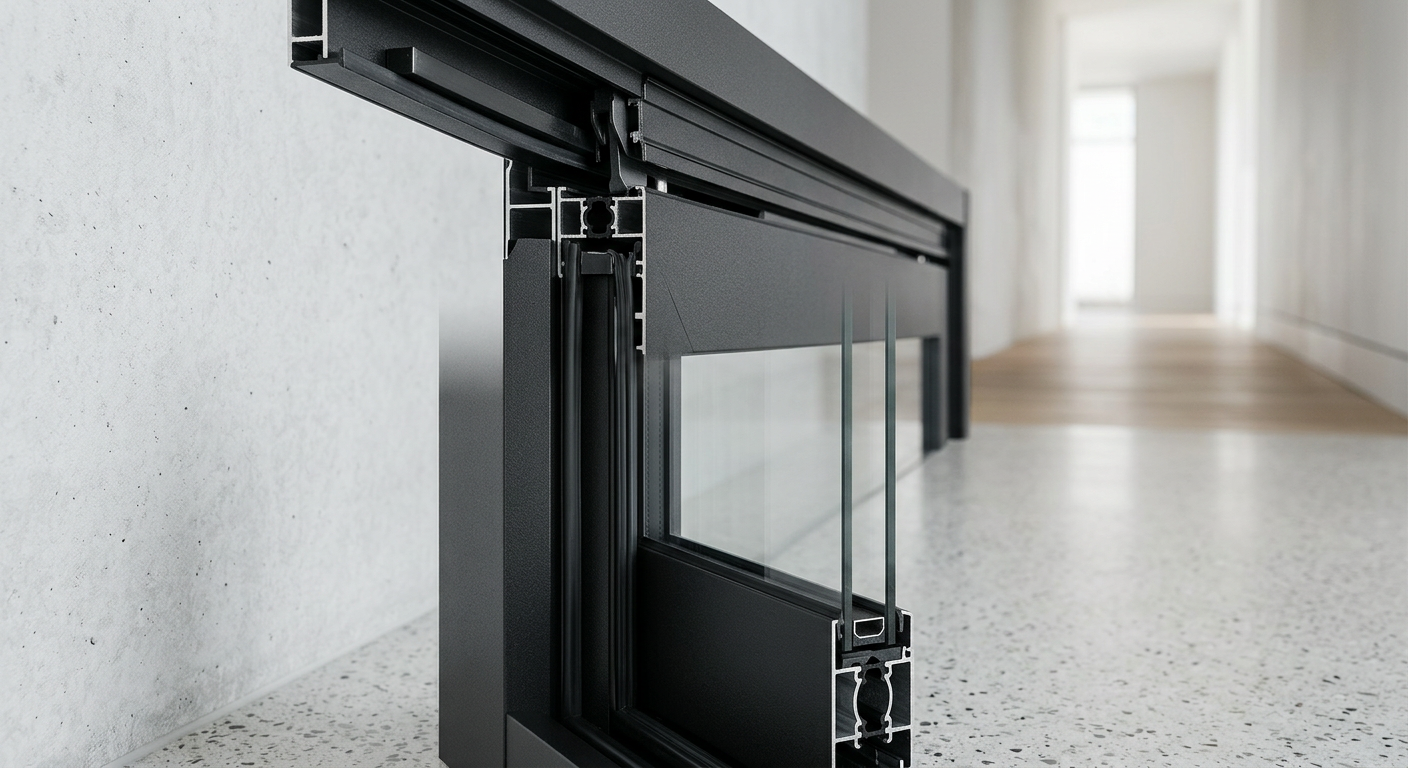

microslit sliding hanging frame profile detail
Frame profile — thermal break, EPDM gaskets and glazing bead engineering.

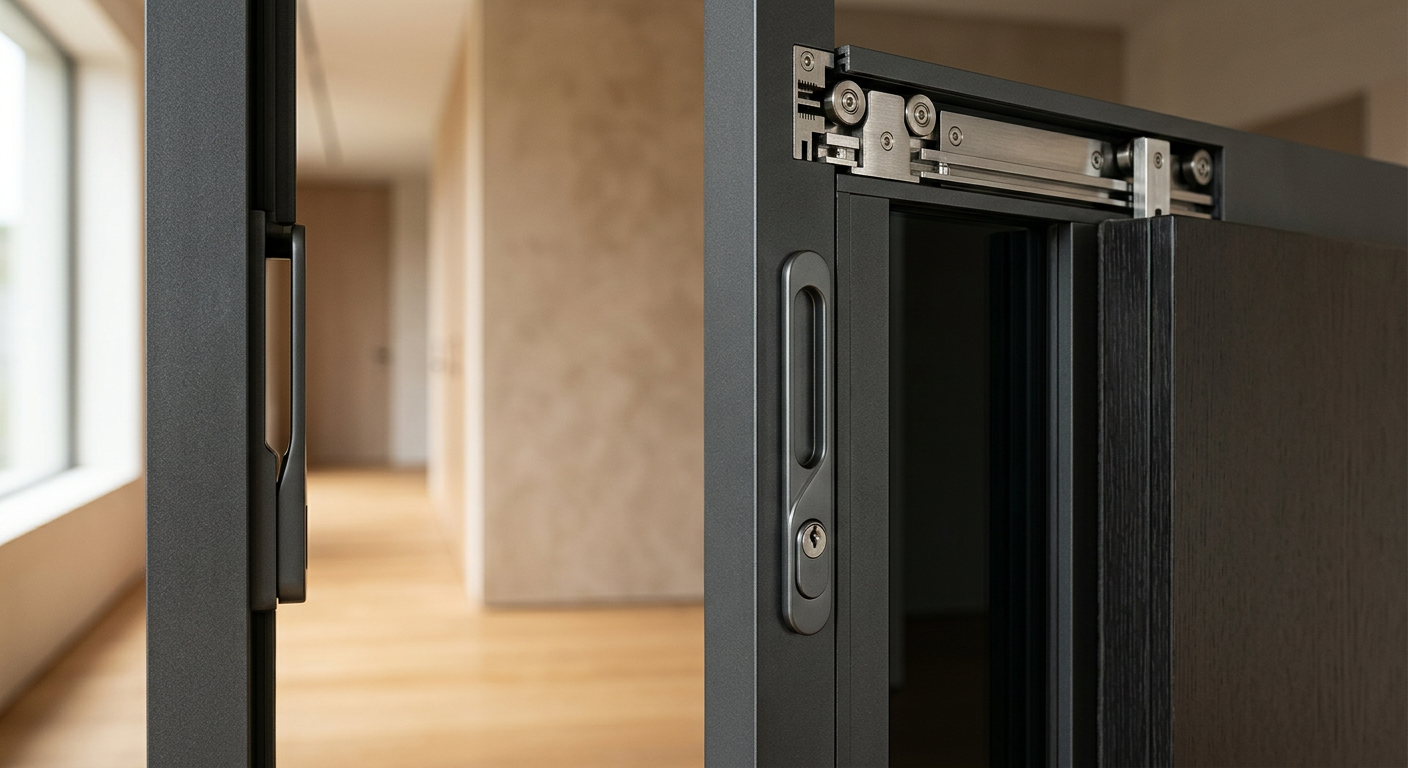

microslit sliding hanging hardware close-up
Engineered hardware — hinges, locks and handles finished to match the frame.

Color Palette

15 standard finishes — RAL custom on request.

Coffee
Brown
Sand Gray
Beige
Metallic Platinum Gray
Silver
Black Gold
Black
Starshine Gray
Gray
Porcelain Electroplated Black
Black
Porcelain Electroplated Gray
Gray
Fluorine Porcelain Gray
Gray
Milan Gray
Gray
Milan White
White
Cream Gray
Beige
Original Wood
Wood-effect
Extreme Black
Black
Extreme Gray
Gray
Ceramic Silver Gray
Silver

Plus custom RAL on RFQ (Liangxuan chart, +2 weeks lead time). All finishes available indoor and outdoor.

Technical Advantages

  • • Ultra-slim 25 mm stile
  • • Minimalist architectural sightlines
  • • Single or double glazed stile
  • • Designer aesthetic

Use Cases

Designer homes
Penthouses
Showroom partitions

Warranties

  • Marine-grade powder coating10 years (within 300 m of coast)
  • German engineered hardware5 years
  • Tempered laminated glass5 years
  • MAZLOKS installation2 years

UK Compliance

  • BS 6206 — tempered / laminated glass
  • Document L — thermal (Low-E + Argon recommended)
  • Part Q — security

Lead time: 12–14 weeks from PO confirmation to UK delivery.
