Micro-slit Narrow-frame Casement

Minimalist bathroom and partition doors with micro-slit profile.

Request a Quote

Key Specifications

Stile
25 × 40, 1.8 mm
Outer frame
42 mm (49 wall)
Wall wrap
16 mm

Glazing Options

5+0.76+5
5 mm + PVB 0.76 + 5 mm
Laminated safety

Engineering details

Profile, sealing & performance

Air
Class 2
Acoustic
30 dB Rw

Construction

Alloy6063-T5
Wall thickness1.8 mm
Frame depth42 (49 wall) mm

Sealing & hardware

• EPDM perimeter seal

• Concealed pivot hinges

• Magnetic latch option

Dimensions & drainage

Max width1000 mm
Max height2400 mm

Glazing bead profiles

Available bead profiles for this series:

  • • Beveled

Opening modes

Four lock-and-swing configurations are available — A through D.

AMode

Right lock · inward swing

BMode

Left lock · inward swing

CMode

Right lock · outward swing

DMode

Left lock · outward swing

Series gallery

Real installations and hardware details from the manufacturer reference catalogue.

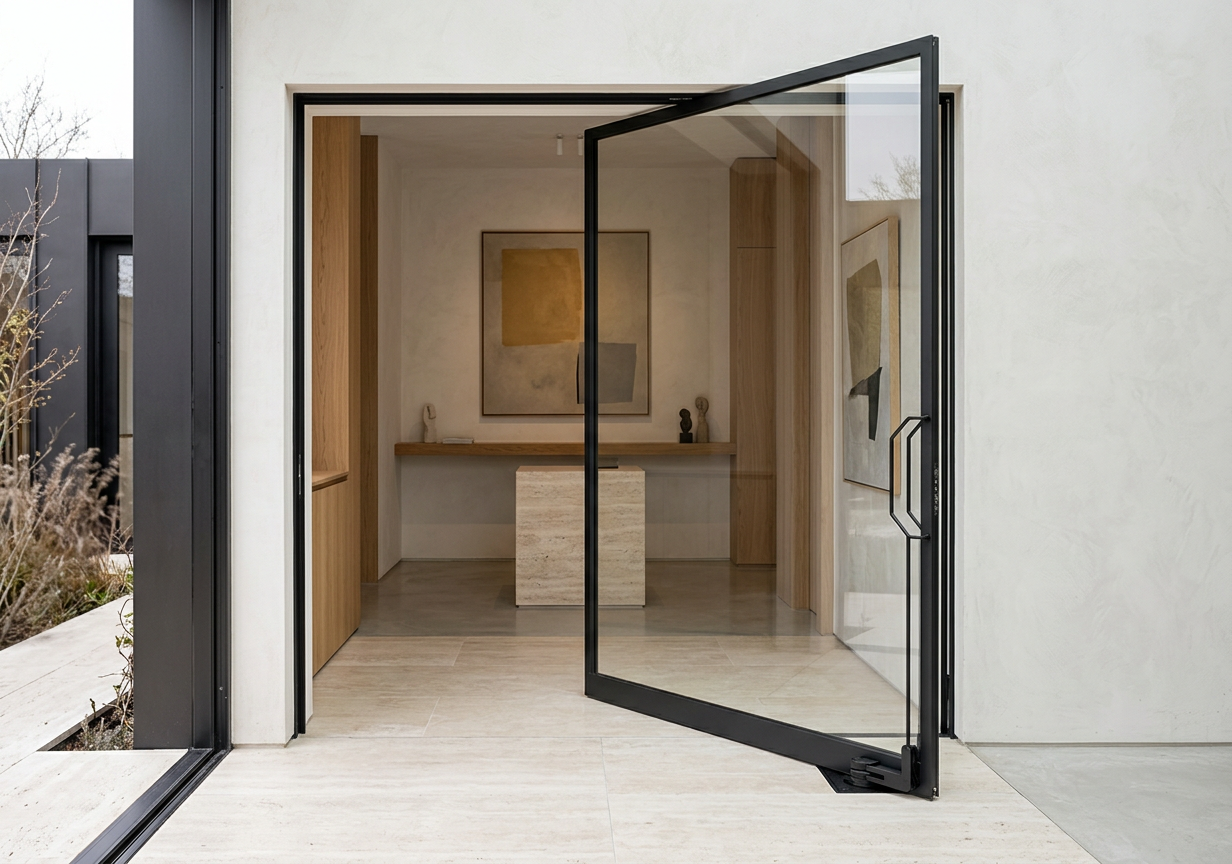

microslit casement — in-situ architectural installation
Micro-slit casement pivot door — concealed pivots, magnetic latch option.

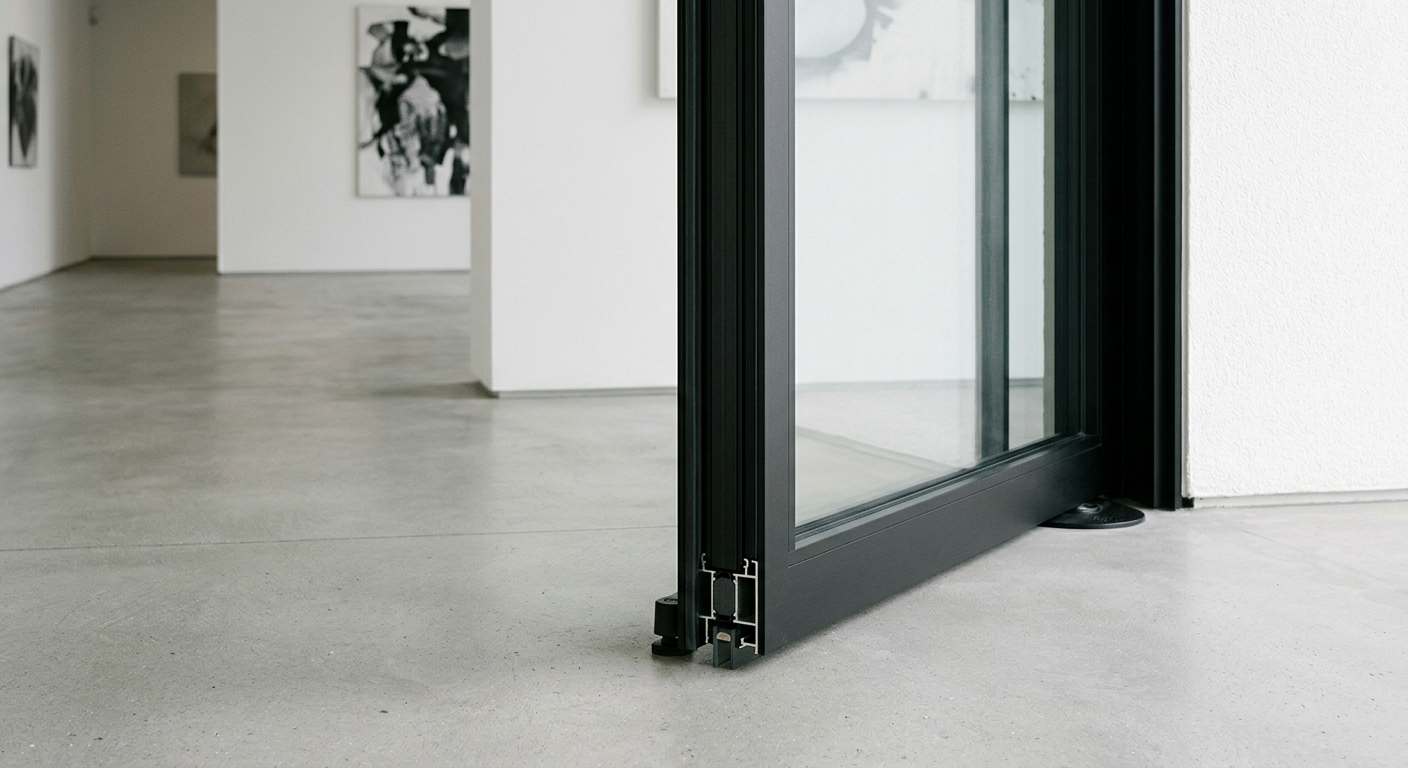

microslit casement frame profile detail
Frame profile — thermal break, EPDM gaskets and glazing bead engineering.

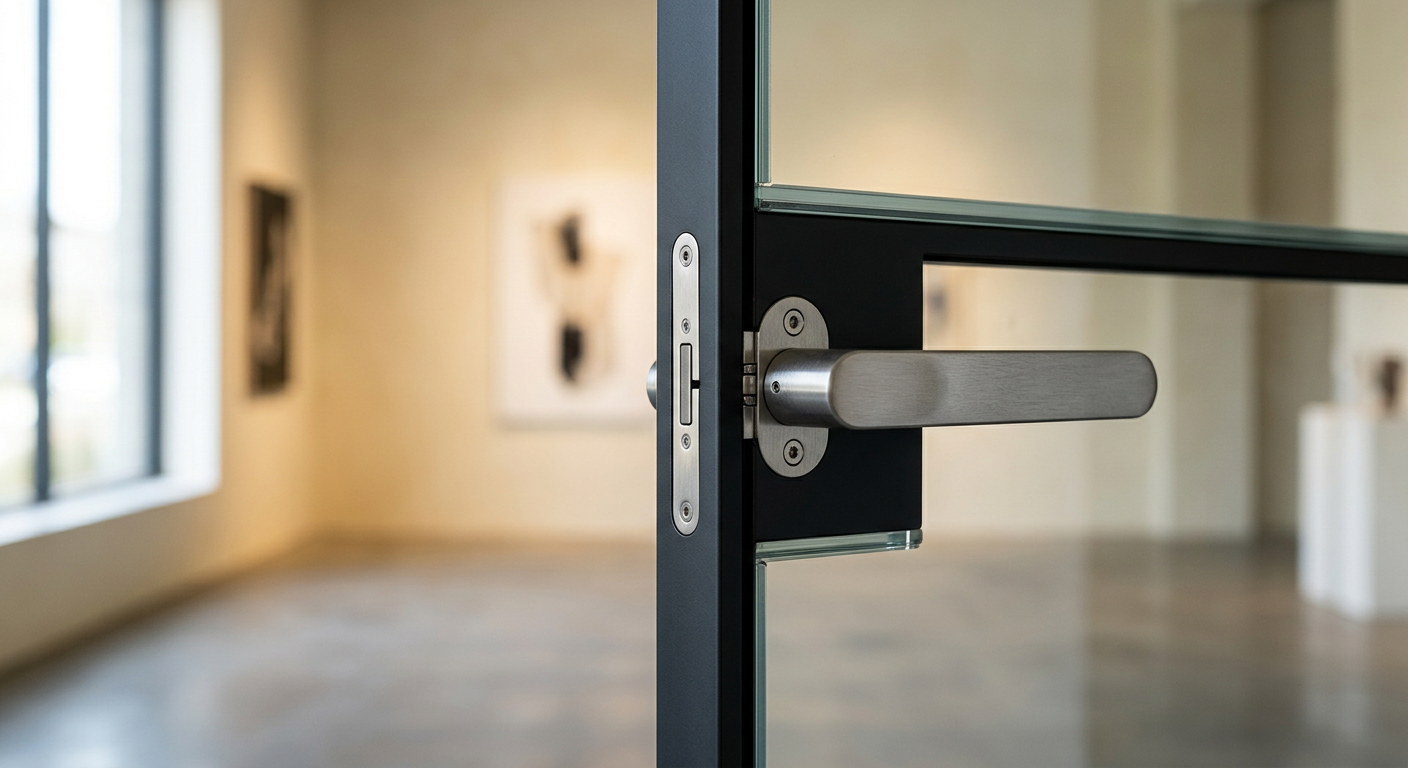

microslit casement hardware close-up
Engineered hardware — hinges, locks and handles finished to match the frame.

Color Palette

15 standard finishes — RAL custom on request.

Coffee
Brown
Sand Gray
Beige
Metallic Platinum Gray
Silver
Black Gold
Black
Starshine Gray
Gray
Porcelain Electroplated Black
Black
Porcelain Electroplated Gray
Gray
Fluorine Porcelain Gray
Gray
Milan Gray
Gray
Milan White
White
Cream Gray
Beige
Original Wood
Wood-effect
Extreme Black
Black
Extreme Gray
Gray
Ceramic Silver Gray
Silver

Plus custom RAL on RFQ (Liangxuan chart, +2 weeks lead time). All finishes available indoor and outdoor.

Technical Advantages

  • • Micro-slit minimalist profile
  • • Bathroom and partition application
  • • 16 mm wall wrap
  • • Tempered glass options

Use Cases

Bathrooms
Wet rooms
Office partitions

Warranties

  • Marine-grade powder coating10 years (within 300 m of coast)
  • German engineered hardware5 years
  • Tempered laminated glass5 years
  • MAZLOKS installation2 years

UK Compliance

  • BS 6206 — tempered / laminated glass
  • Document L — thermal (Low-E + Argon recommended)
  • Part Q — security

Lead time: 12–14 weeks from PO confirmation to UK delivery.
